Reading data from labels

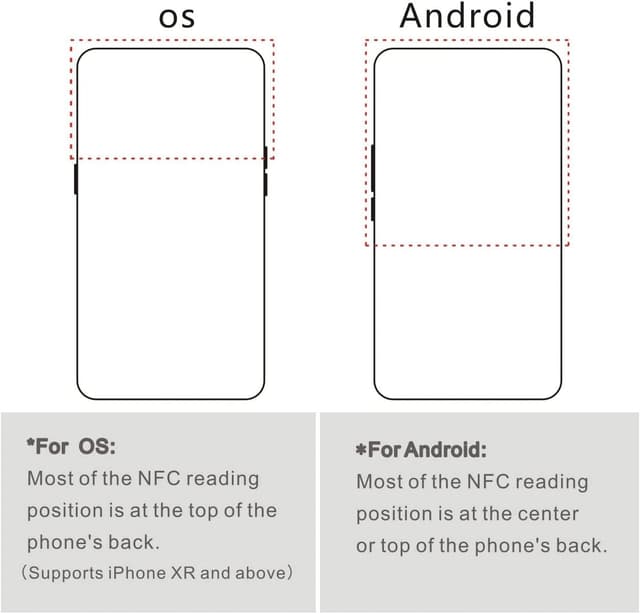

To read data from the NFC label, bring your phone close to it. Make sure that NFC is enabled in settings (Android only). The image below shows where the NFC module is located for Android and Apple devices.

To scan QR codes, use the phone's camera or any other third party application, that can scan QR codes. Currenty, there is no in-built solution to scan QR codes inside the Corpad app.

After reading the label, you will be redirected to the new screen, where the information recorded on the label is displayed.

Create or find item

There are two ways you can utilize label information:

• Add to the survey - you can create a new item in the currently opened survey with the information from the tag.

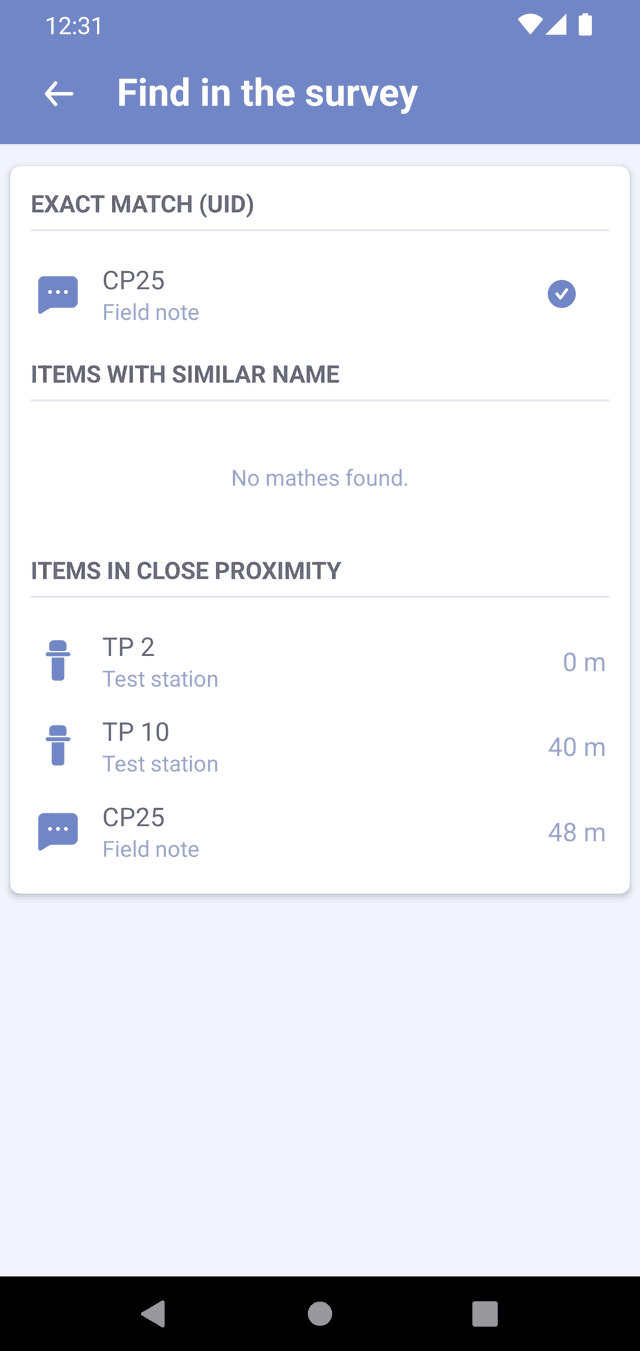

• Find in the survey - you can locate an item in the currently opened survey by UID, name, or GPS coordinates.

UID mathing

UID stands for Unique Identifier, which is a unique data string assigned to a test point or rectifier when it is created. To locate a test point by UID, the user must have the same survey file as the one at the time when the test point was recorded to the label (or a survey file created from a template).

For example, if the survey file was imported from a spreadsheet file, test points or rectifiers will have different UIDs, so you should use other methods to locate them in the survey.

Name matchng

This option allows you to locate items in your survey that have similar names to the item from the NFC label. It can be useful when UID matching did not work.

Location matching

This option is available for labels with GPS coordinates. It searches for items in your survey in close proximity to the NFC label and sorts them by distance.

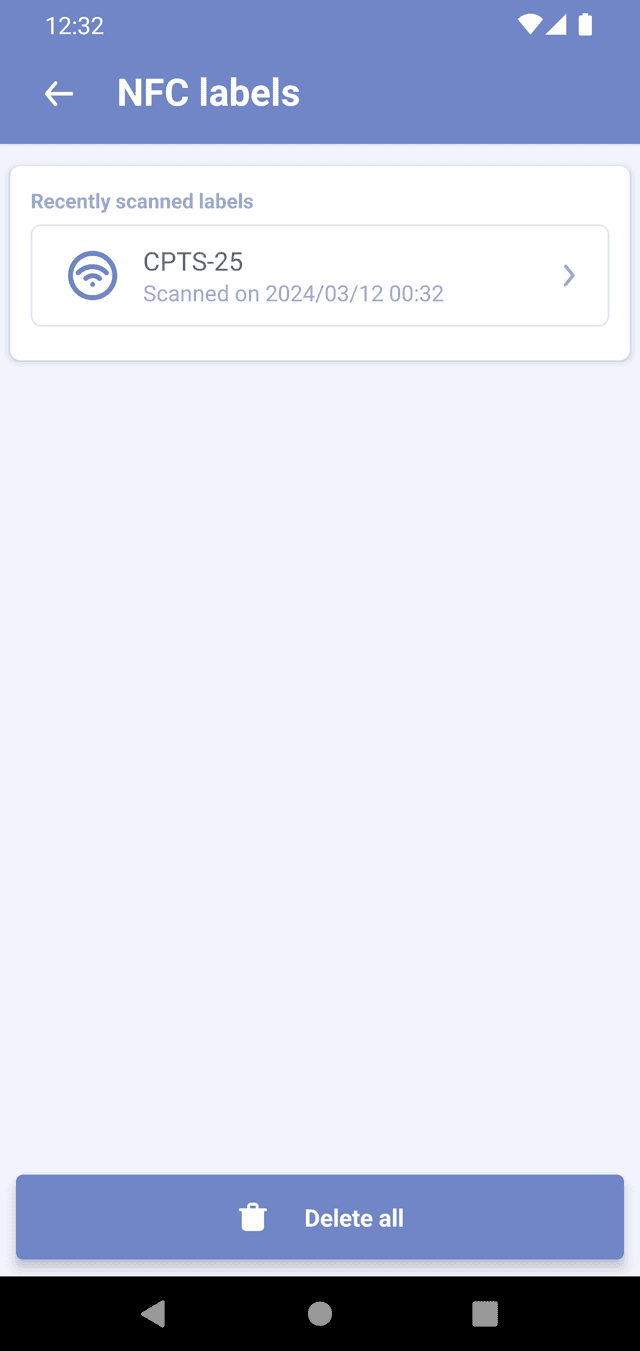

Scanned label history

Recently scanned labels are automatically saved to your device for easy access later. You can find them at any time by navigating to 'Settings' -> 'QR code and NFC labels'.

From there, you can view the details of the scanned labels and add them to currently opened survey.
