Collecting data

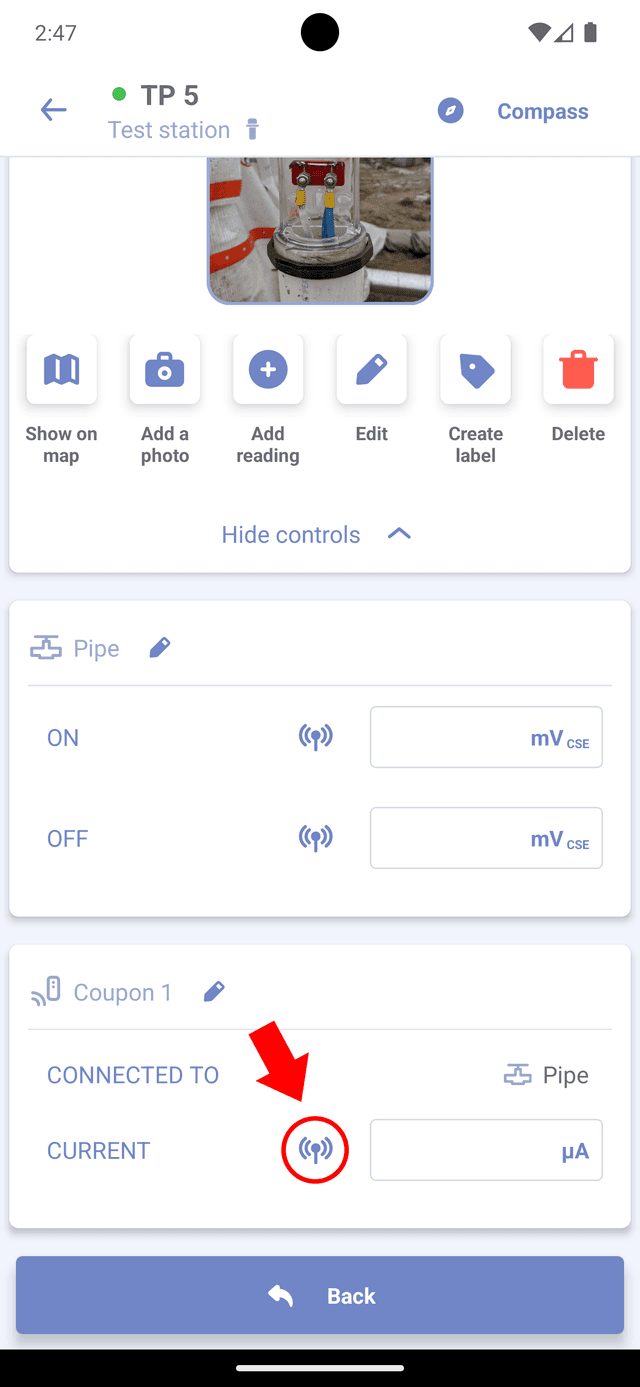

To collect data using multimeter, first select a test point or rectifier from a survey. If a multimeter is paired, there will be a button on the left side of the field with the multimeter icon. Tap on this button to start capturing data.

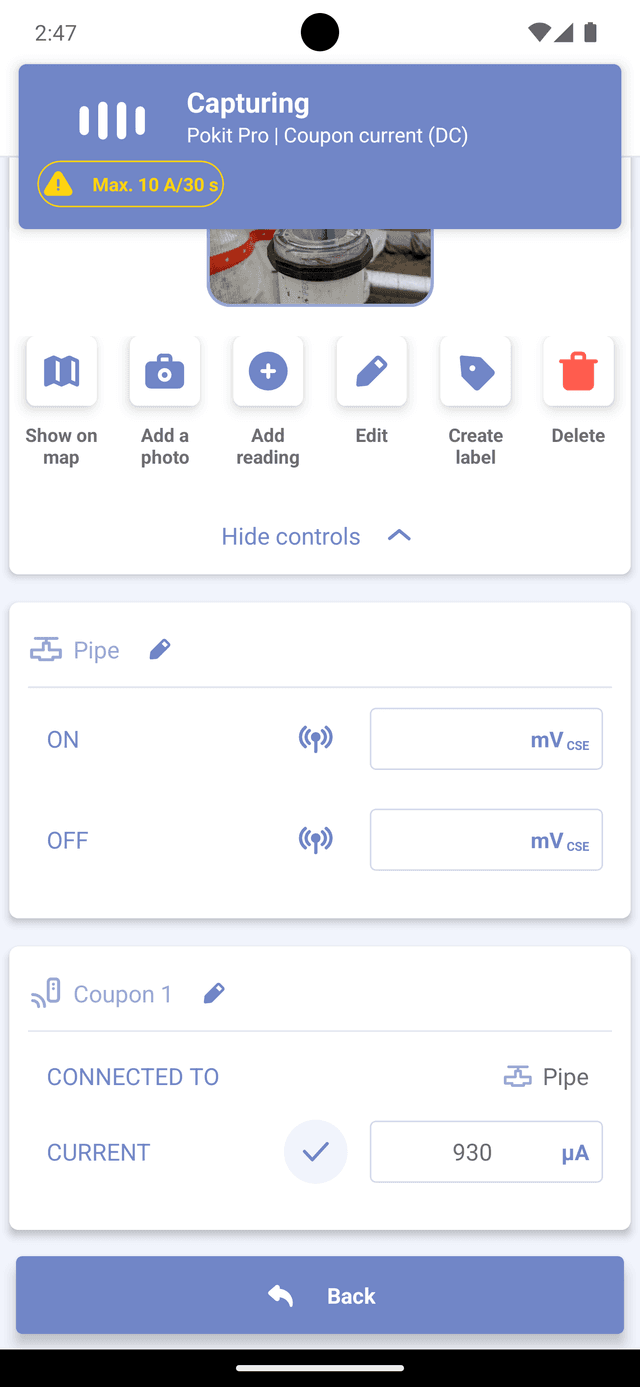

Multimeter toggle has to be in the correct position (when applicable) before you start capturing. Capture begins When a notification at the top of the screen appears. Captured values will automatically populate selected field or fields (in case of ON/OFF potential capture).
To save measurement, press button on the left side of the selected field one more time.
Pokit Pro supports capturing reading when physical button is pressed, however there is a bug that causes multimeter to restart after button is pressed when measuring ON/OFF potentials. While capturing readings with button still works, it's better to use capture button in the app.
Capturing ON/OFF cycles
When capturing ON/OFF potentials, the app will attempt to populate both fields at the same time. This is default behavior, but you can turn it off in settings.

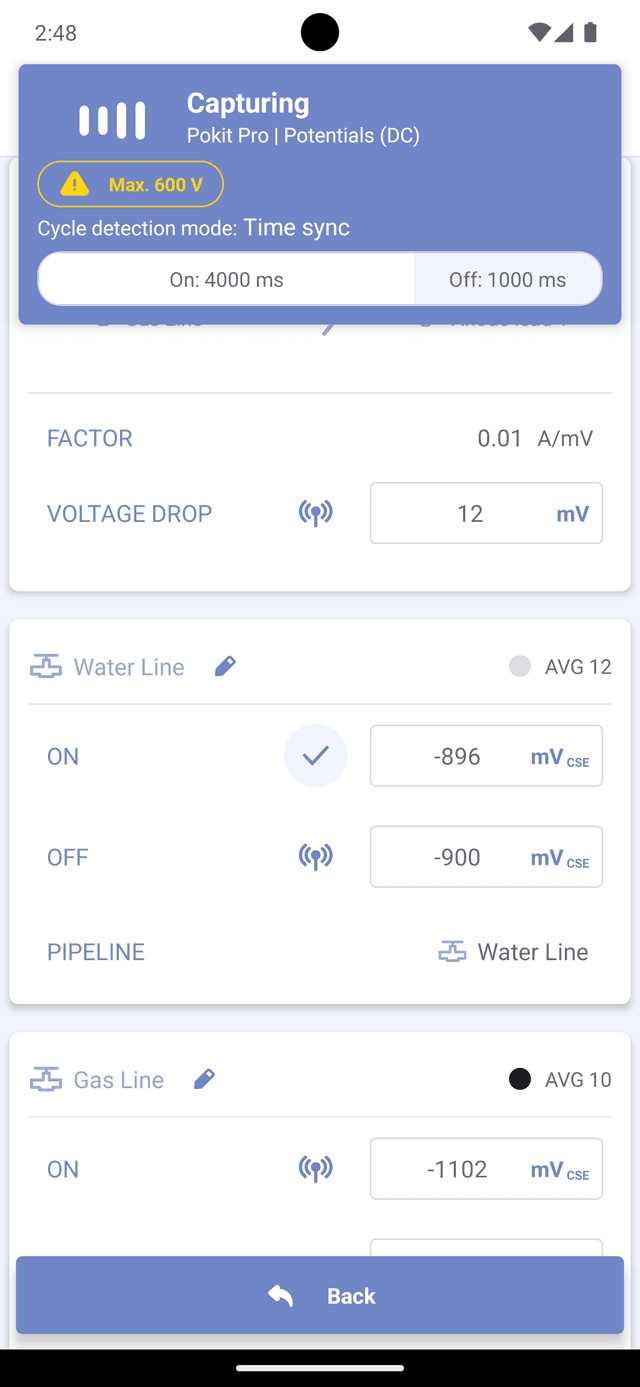

The cycle capture mode and cycle duration will be shown in the notification at the top of the screen. ON/OFF potential readings will be updated with the interval of selected cycle time.
In order to capture ON/OFF potentials at the same time, they both have to be assigned to the same reference cell.
