Corrosion calculator

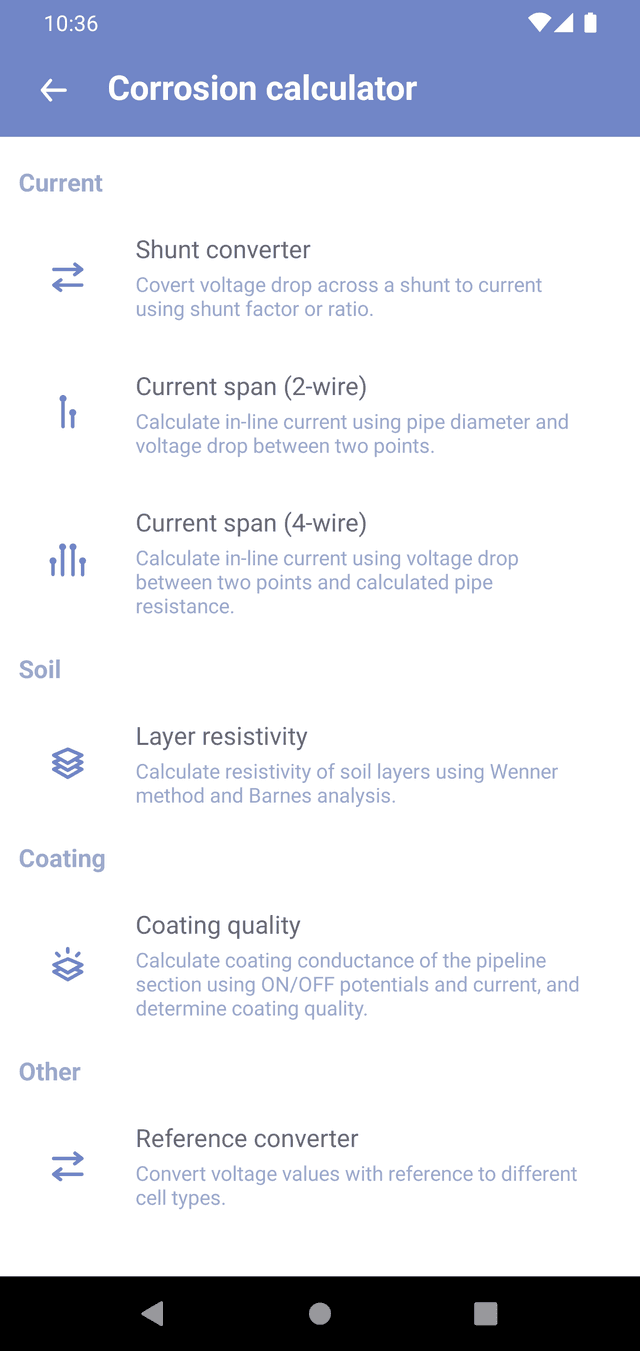

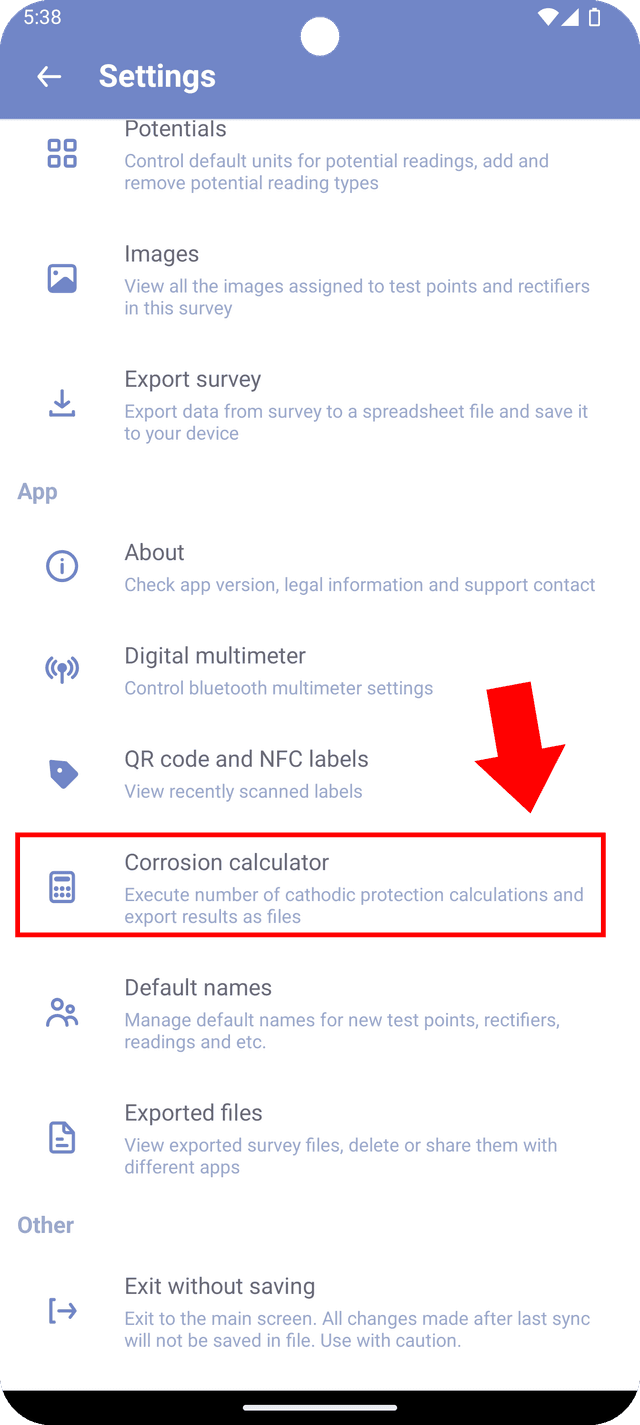

Corpad offers corrosion calculation functionality accessible via 'Settings' -> 'Corrosion calculator'. The following calculators are available:
- Shunt converter
- Current span (2-wire method)
- Current Span (4-wire method)
- Layer resistivity measurement
- Coating quality measurement
- Reference cell converter
FEEDBACK NEEDED: If you have ideas for a new calculators to be added, don't hesitate and send an e-mail with your suggestions to andrei@corpad.ca
Working with calculator

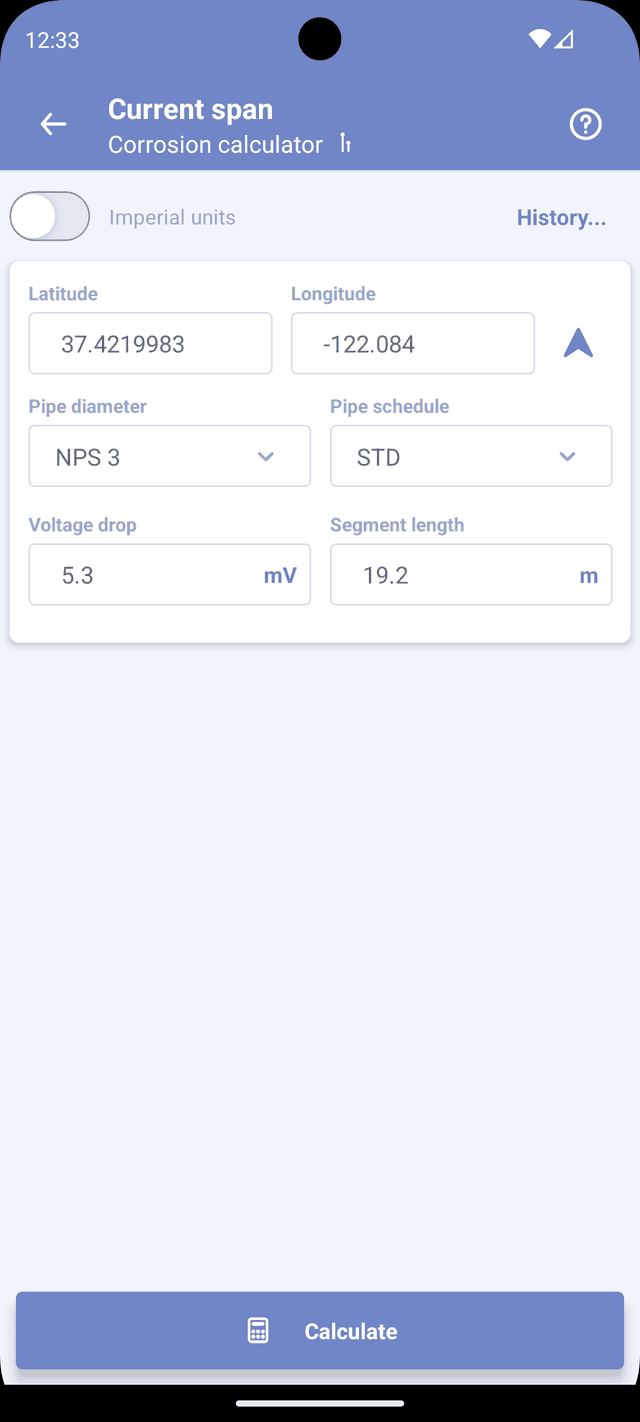

To perform a calculation, fill in all required fields in the calculator and press Calculate. Optionally, you can enter latitude and longitude in decimal format (e.g., 12.34567, 34.5678).
For detailed instructions on the procedure and necessary measurements of the calculation, press '?' at the top right corner of the screen. Input parameters cannot be changed after result is calculated.

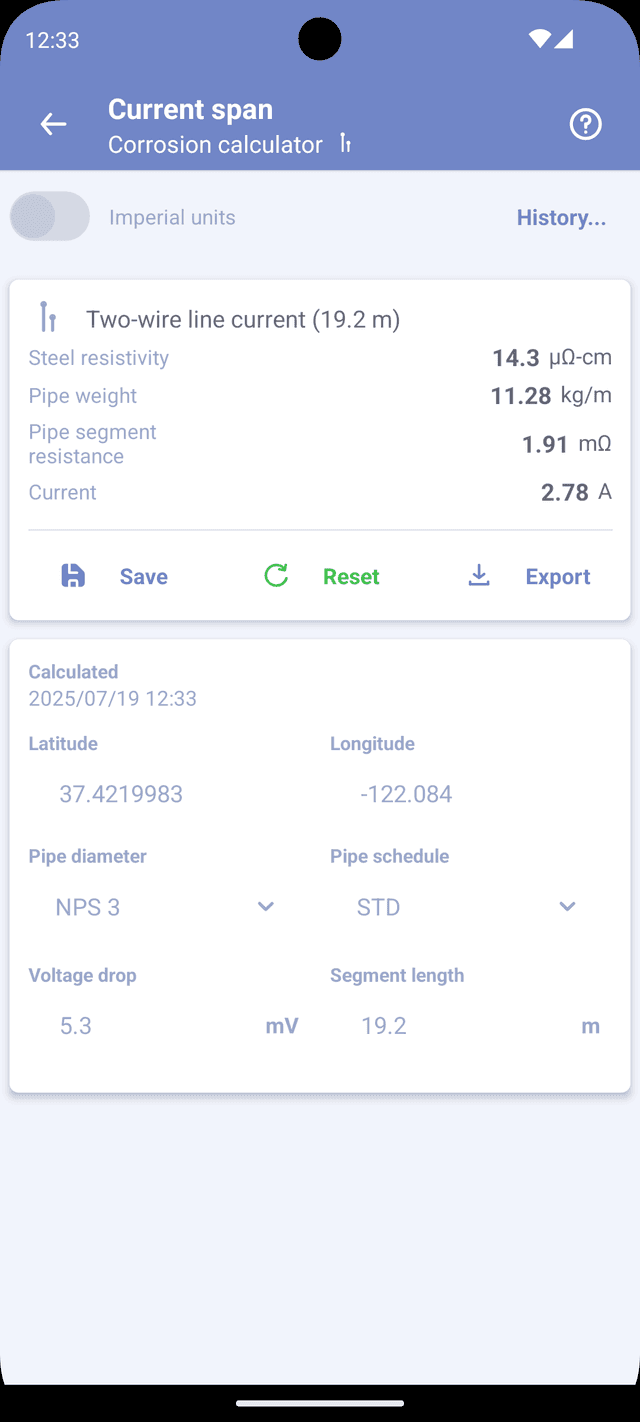

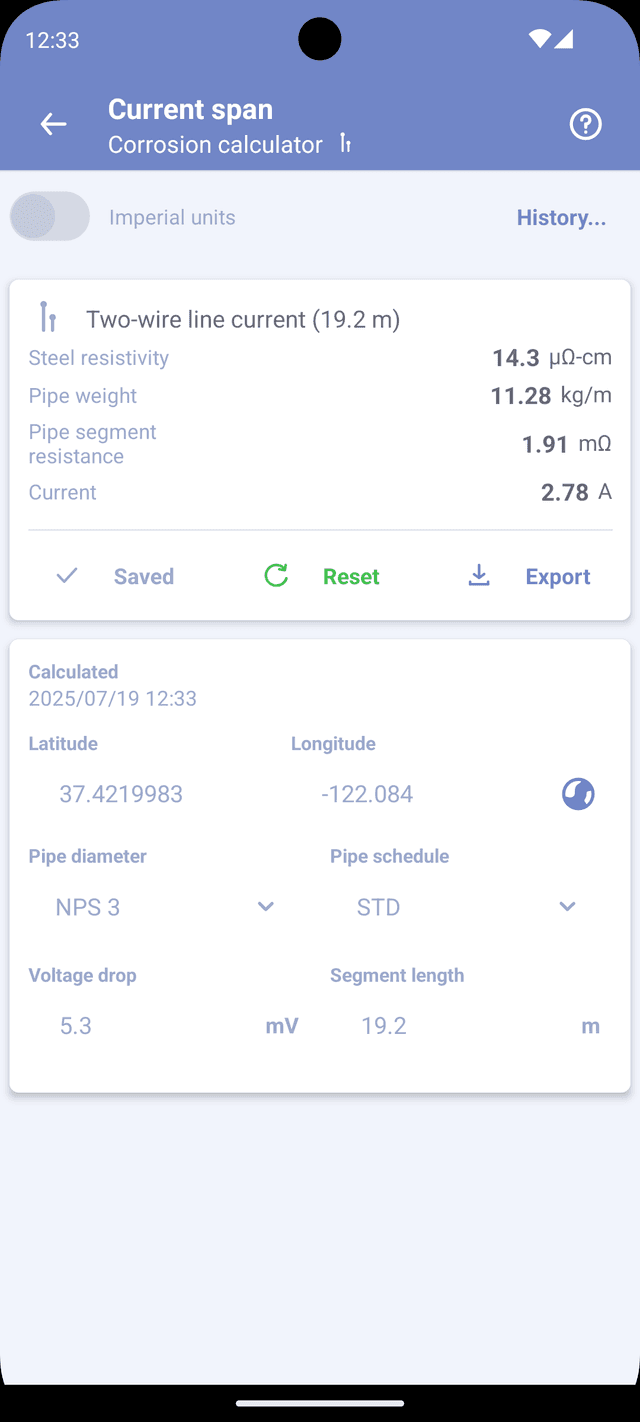

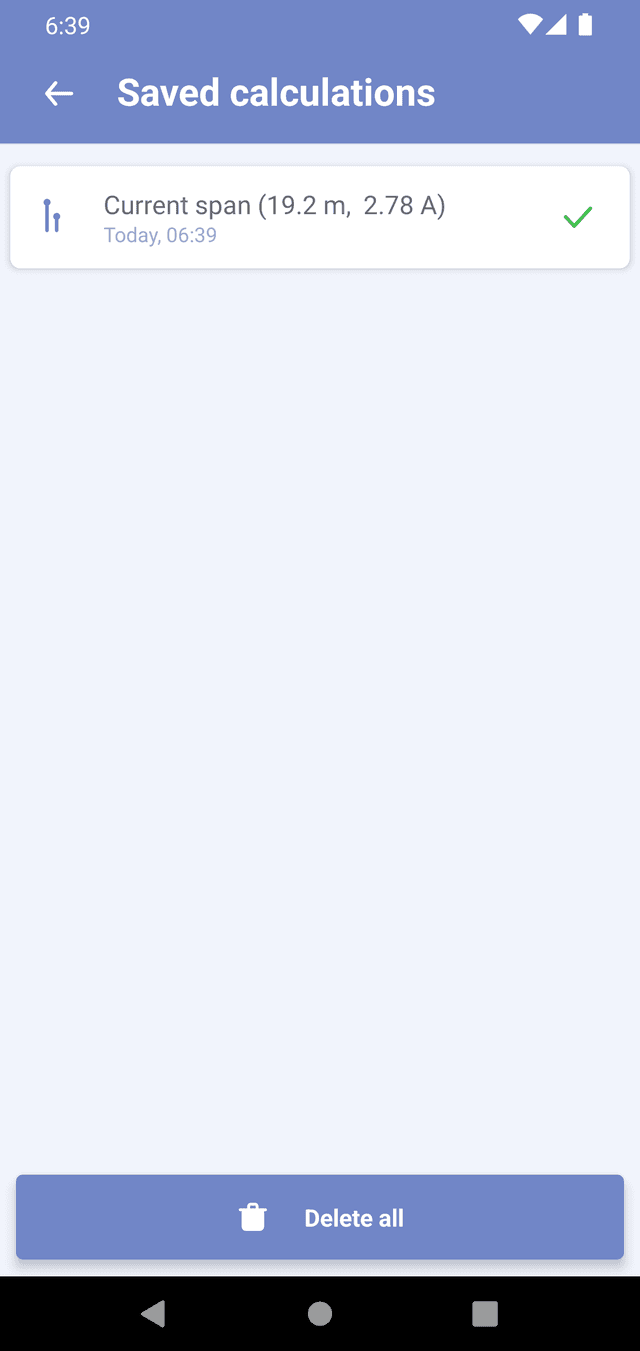

After the calculation is completed, the result view will be displayed at the top. You can save the result by pressing the 'Save' button. To access saved calculations, press the 'History…' button at the top right side of the screen and select the saved calculation.
To export the initial data and calculation result as a .csv file, press the 'Export' button. The file will be available in Exported files screen.
The exported .csv file will include input parameters and result of the calculation, along with date and time when calculation was performed and gps coordinates if they were entered.

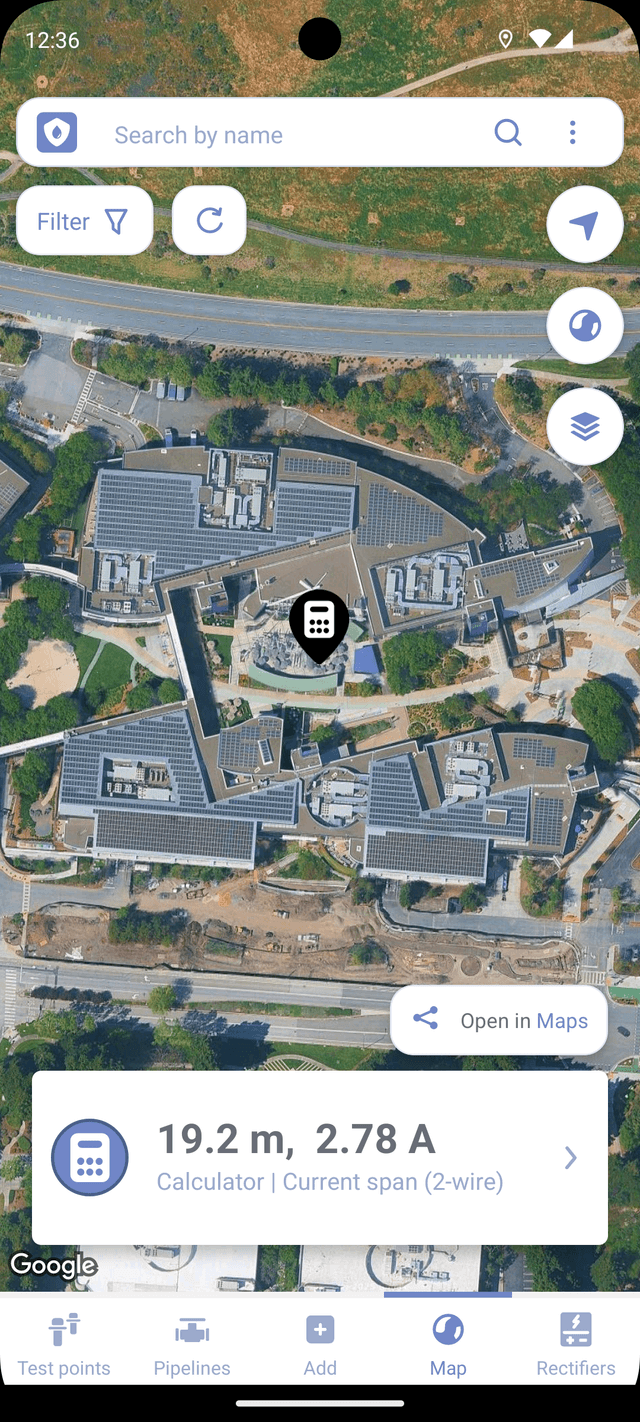

If coordinates are provided, the calculation will appear on the map within the currently open survey. Note: You must press 'Save' button for the calculation to be displayed on the map.
Calculations are not attached to a single survey, and can be viewed even when there are no surveys opened.
